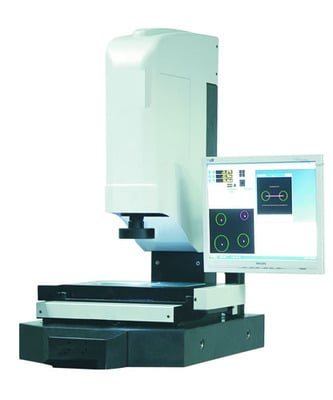

Product Features
1. Programmable 4/24-quadrant LED surface light, does the surface measuring for different complicated workpieces, improve the measuring precision.
2. American NAVITAR lens, together with Motor Zoom technology, makes full automatic continuous zooming come true and no calibration when changing zoom arbitrarily.
3. Mouse or joystick is used easily.
4. CNC control system for the 4 axes(X/Y/Z full closed loop servo control system/U stepping control system).
Características
Applied fields:
PCB, mobile fittings, connector, batched-quick inspection for machine parts.
Technology parameters
Model
SP-VMC-2515
SP-VMC-3020
SP-VMC-4030
SP-VMC-6060
Measuring Range (X/Y/Z:mm)
250×150×200
300×200×200
400×300×200
600×600×300
Dimension(mm)
800×500×1650
980×650×1650
Operation Mode
Automatic
CCD
430,000 pixel color CCD
Lens
American NAVITAR Motor Zoom lens
Magnification
Optical magnification: 0.7X-4.5X;
Image magnification: 28X-180X
Software
OVM Pro 2.0
Optical Ruler Resolution
1μm
Repeatability
2μm
Precision (X/Y)
(3+L/200)μm
Load Capacity
30kg
Applicable Environment
Power:110V~220V±10% 50/60HZ
Temperature: 20±5 oC Humidity: 45%-75%
Free Maintain Time
One year
