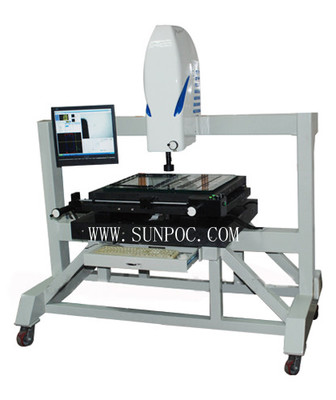

Big range Video Measuring Machine SP-VMH-500
big range manual video measuring machine
Model: SP-VMH-500 SP-VMH-600 SP-VMH-700
Measuring Range (X/Y/Z:mm): 500×400×200 600×600×300 700×600×300
Dimension(mm): 1910×1000×1845 2100×1200×2025 2100×1250×2025
Operation Mode: Manual
Material: High precision granite
Precision (X/Y): (3+L/200) μm
Optical Ruler Resolution: 1 μm
Características
Product Features :
1. Granite machine base and column ensures no distortion.
2. Z axis transmission system is designed in front to operate conveniently.
3. step-zoom lens working together with software needs no linear calibration under fixed magnification.
4. Independent development of multifunctional gauge block is delivered with machines for teaching illustration and precision calibration purposes.
5. OVM semi-automatic software.
