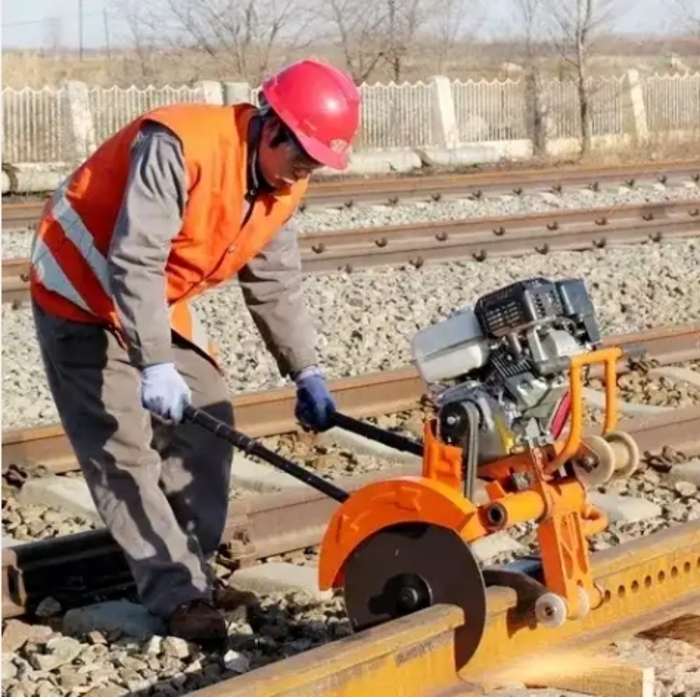

NQG-5III Internal combustion rail cutting machine is suitable for cutting rails of 43kg/m~75kg/m . The quality of cutting section meets the requirement of railway industrial standards. It's a necessary tool used in railway overhaul, maintenance and rush repairing operation. It has features of fast cutting speed, high utilization rate of thin grinding wheel, high quality of cutting section, easy operation, easy movement, safe use and wide application range etc.
Model
NQG-5III
Type
Rail Cutting Machine
Material
Stainless Steel
Dimensions (L x W x H) (mm)
670*600*510mm
Internal combustion engine
HONDA GX200
Engine Power
4.8kW
Engine Speed
3600r / min
Thin grinding wheel (spindle)
Spindle speed 3030r / min
Specification (linear velocity)
400 * Φ 32 * 4 (≥70m /s)
Cutting time
60kg / m rail, ≤120S
Number of usage
50kg /m rail, use ≥ 4 times
60kg /m rail, use ≥ 3 times
Machine weight
39.5kg
