Descrição

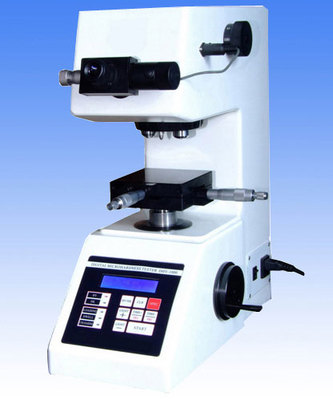

Micro Vickers Hardness Tester
Model: SMV-1000
Dimension of the X-Y stage: 100 100 mm
Travel of the X-Y stage: 25 25mm
Max. height of the specimen: 70 mm
Dimension ( L*W*H ): 425 245 490mm
Net Weight: 30 KG
Standard Delivery: X-Y stage ; Thin specimen anvil ; Fork-shaped anvil ; Fine wire anvil; Level; Adjustable screw ; 10 eyepiece ; 20x and 40x objective; Micro Vickerss hardness blocks ( high and medium )
Características
Special Features:Micro Vickers Hardness Tester SMV-1000, is a precision hardness testing machine which is integrated with the technology of optics, mechanics and computer. It is applicable to measure the hardness value of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals; Glass, ceramics, agate, precious stones, and it can be tested about the depth and the trapezium of the carbonized layers and quench hardened layers.
